Fence information

Only interested in the last four pages of the Covenants that show the fence diagrams? A much smaller PDF of approved fence styles is available below. Right click and select “Save Target As…” to download these PDFs to your computer.

• Fence Diagrams (PDF)
• Perimeter Fence Diagram (PDF)
• Perimeter Fence Stain Formula (PDF)

Click here to jump to information concerning perimeter fence design.

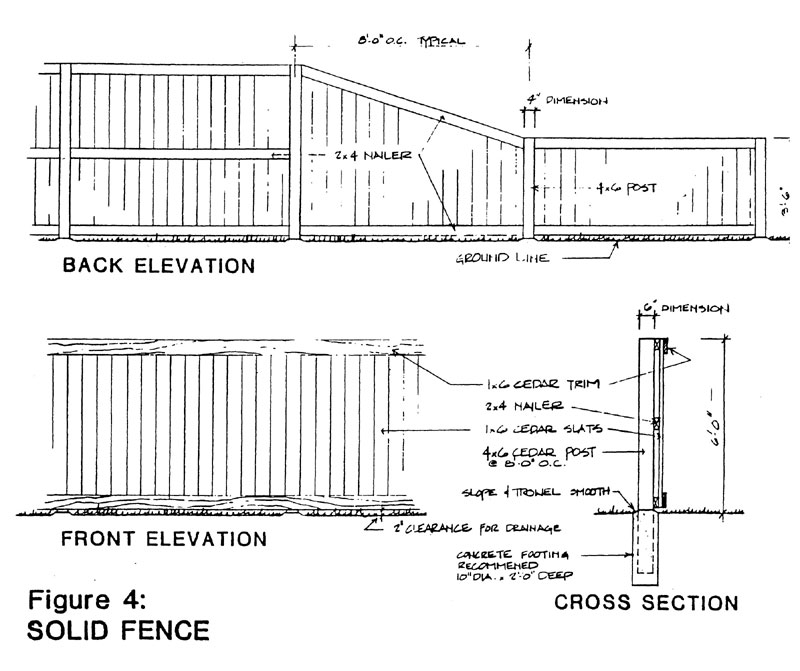

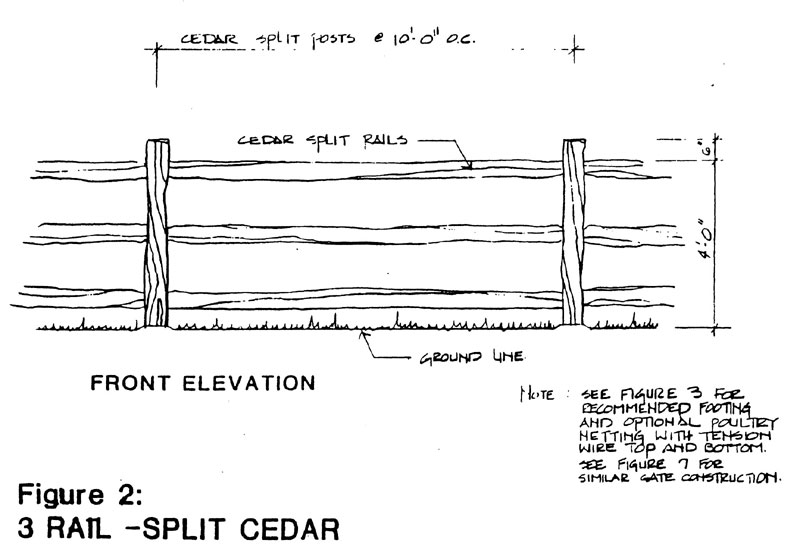

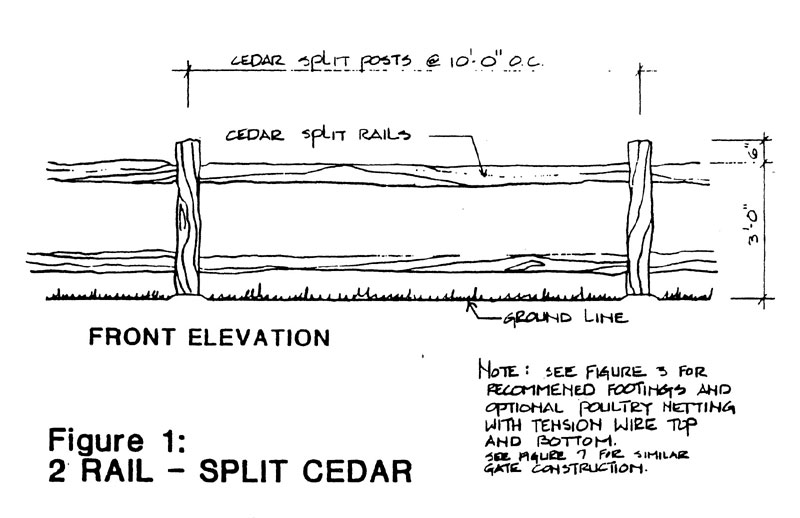

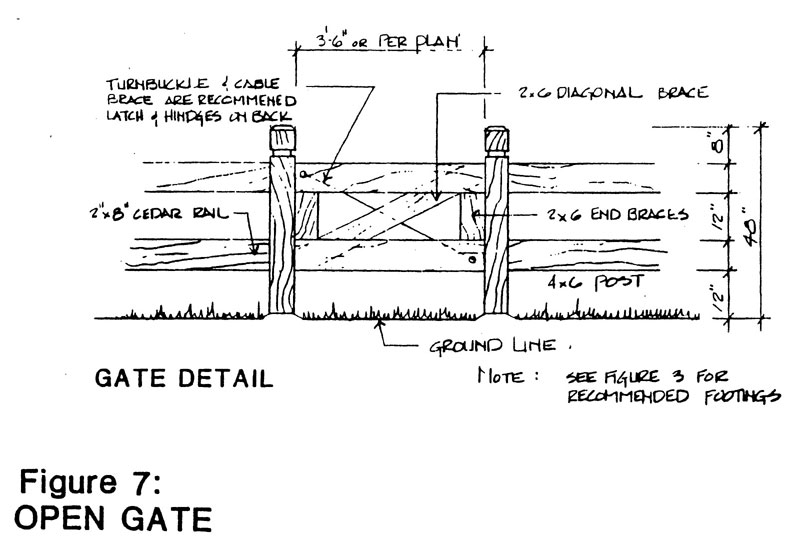

Fence Diagrams from the Homestead Farm Covenants and Guidelines
Click any image to see it much bigger

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -

PERIMETER FENCE NOTES:

1. Rails cut to fit between the posts is an acceptable alternative to notching the post as long as a fabricated bracket is used to connect the rails to the post. Toe-nailing the rail to the post is not acceptable.
2. Brick pillars shall be raised to match the height of the fence top cap, or removed completely. Brick pillars shall maintain the concrete cap and two layer corbal as currently exists. Posts shall be installed as close to the brick pillars as possible. Gaps between brick pillars and wood fence should be kept to a minimum.
3. All fence material shall be stained the approved color.
   BEHR brand solid stain, oil latex. Formula of Plymouth Gray, Pinto White #337, Base B36C1214.
4. See the Guidelines for material specifications.

Fence stain info Sold at Home Depot Behr + 10 Solid Color Stain, Oil – Latex Formula Start with Pinto White #337, then add:
Colorant		OZ	48	96
B	Lamp Black	0	35	0
C	Yellow Oxid	0	10	0
I	Brown Oxid	0	3	0
and you end up with Plymouth Gray #504

Perimeter Fence Diagrams

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -

- – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - – - -
